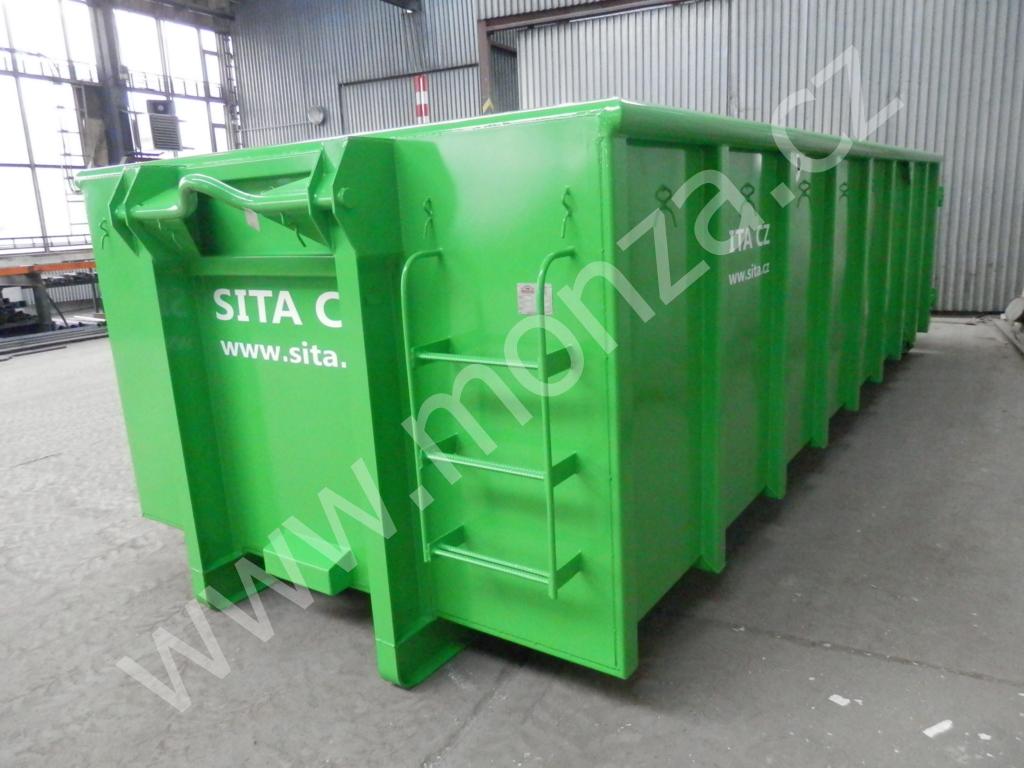

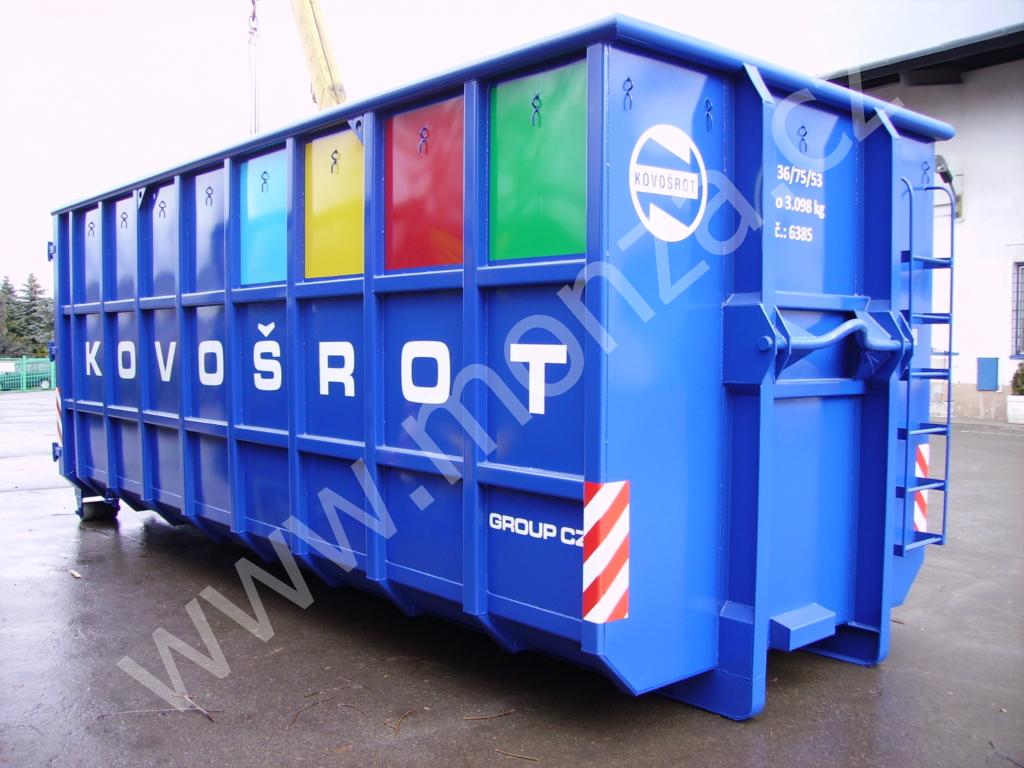

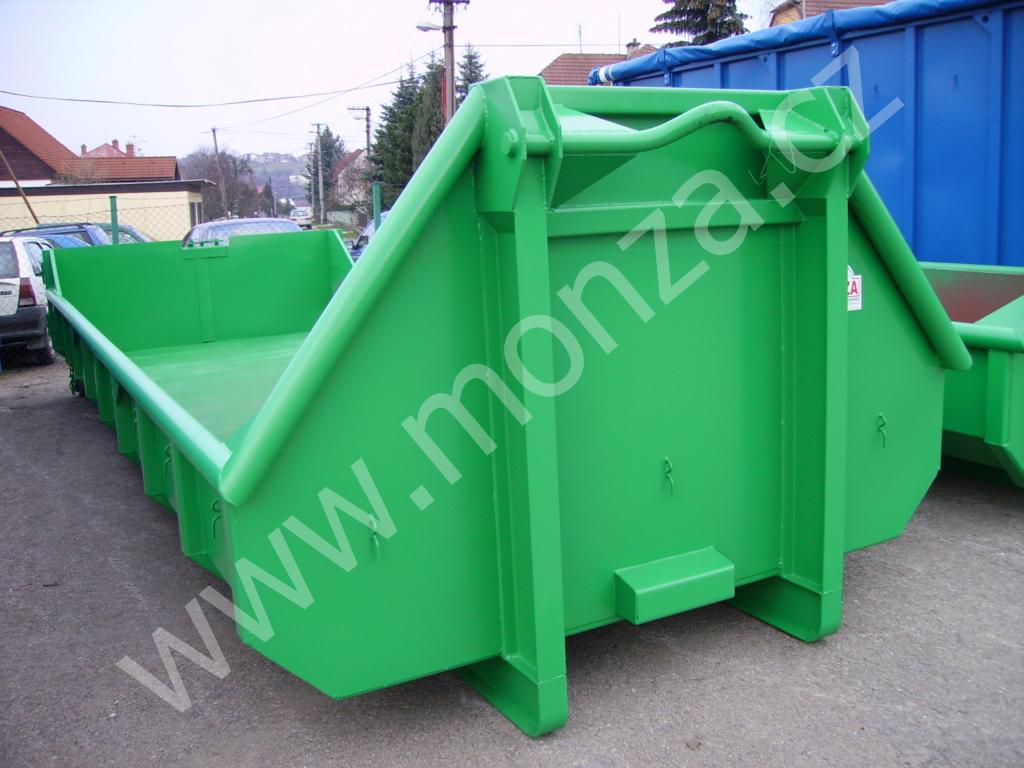

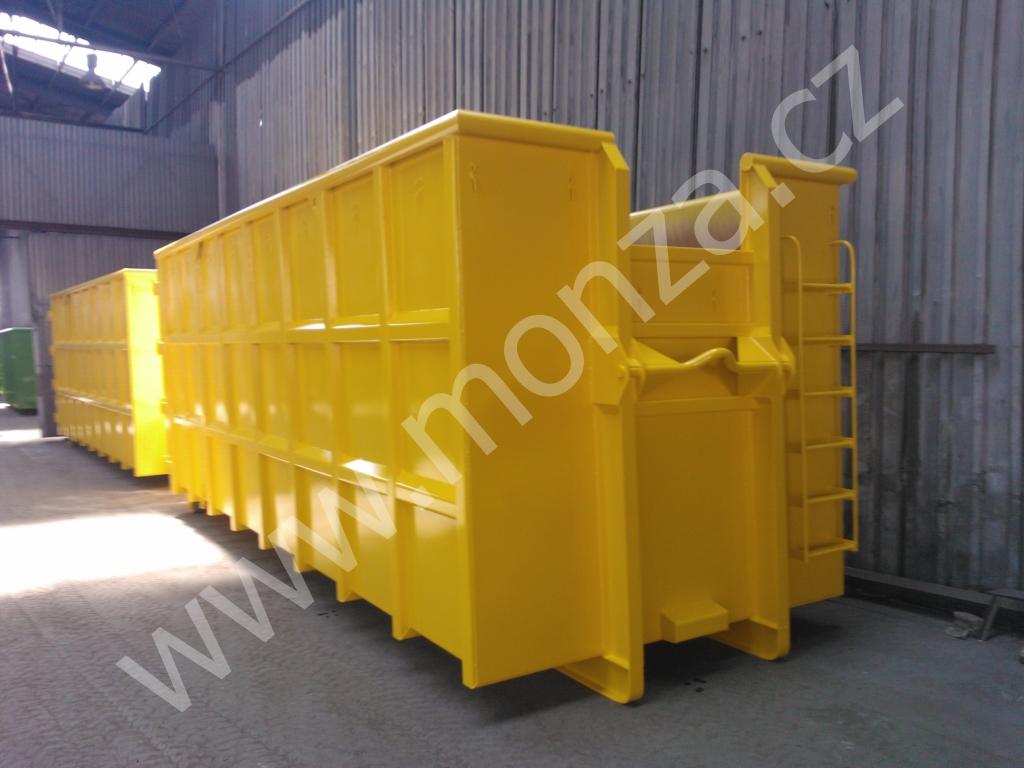

Opened abroll containers are suitable for the collection and transport of household waste as well as industrial waste. Standardly, we offer containers with a double door at the rear side. We can also manufacture containers with a dump-style tailgate, which can be leak-proof (rubber seal) if required.
Abroll – opened
Manufactured acc. to German DIN 30722, Swedish SVENSK SS 3021, or French NFR 17-108

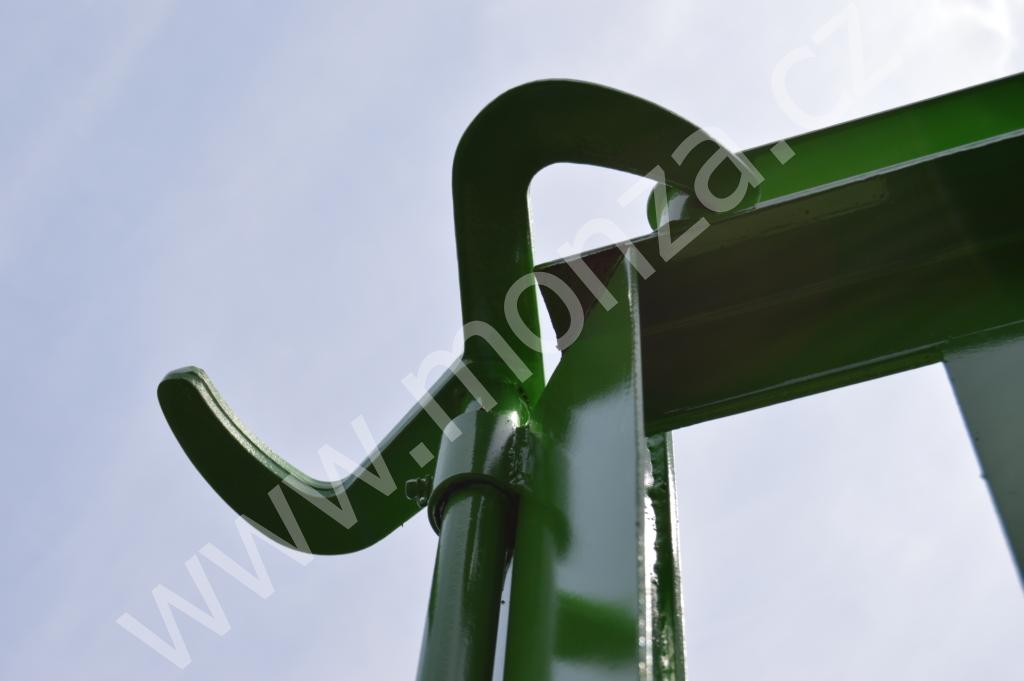

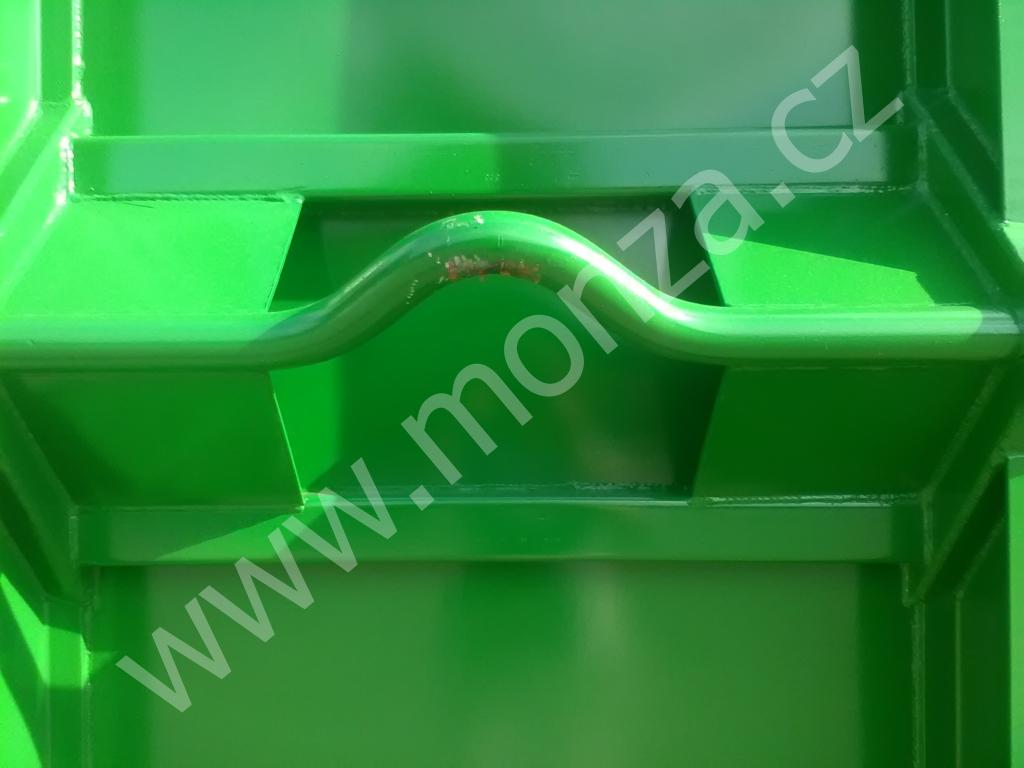

- Hook, rope, or chain lifting system
- Frame made out of steel I-beam profiles INP 180 – acc. to DIN 30722
- Steel sheets: EN S 235, S 355, DOMEX or HARDOX
- Sheet thickness: 2-6 mm

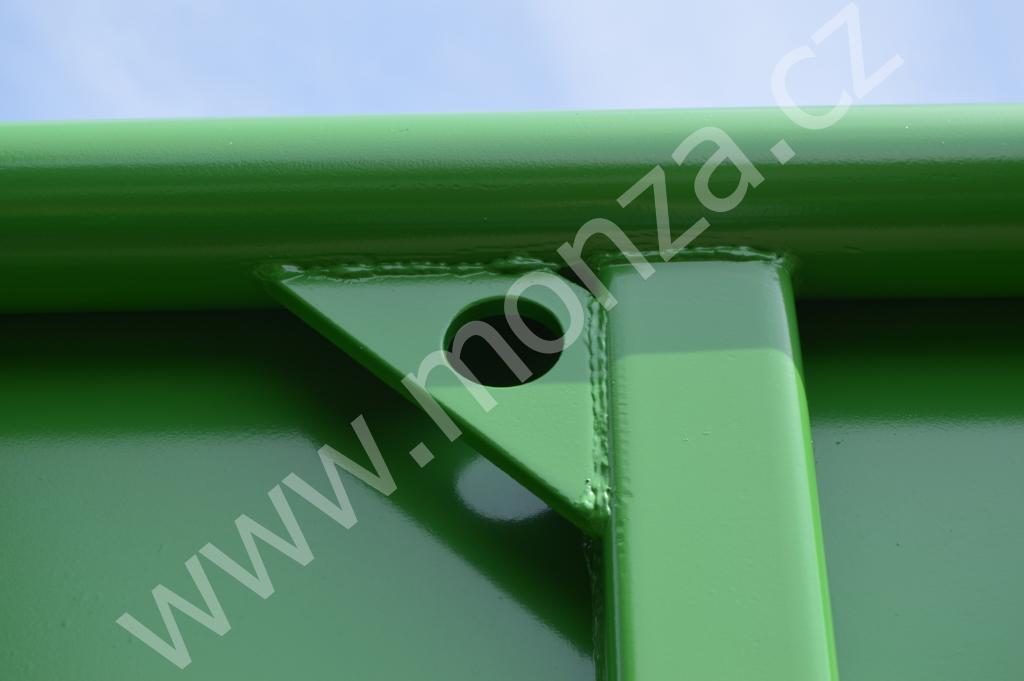

- Top rail
- Floor and side ribs
- Rib spacing: 750 mm or as required
- Floor/sides connection: 45°, 90°, or round (radius)

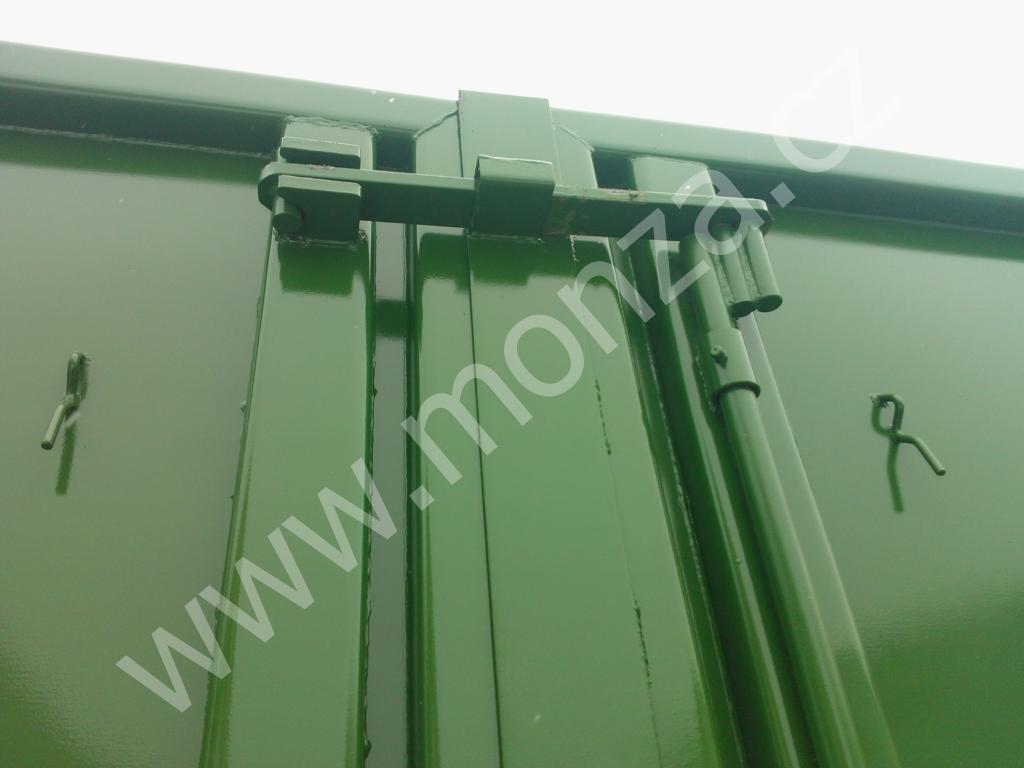

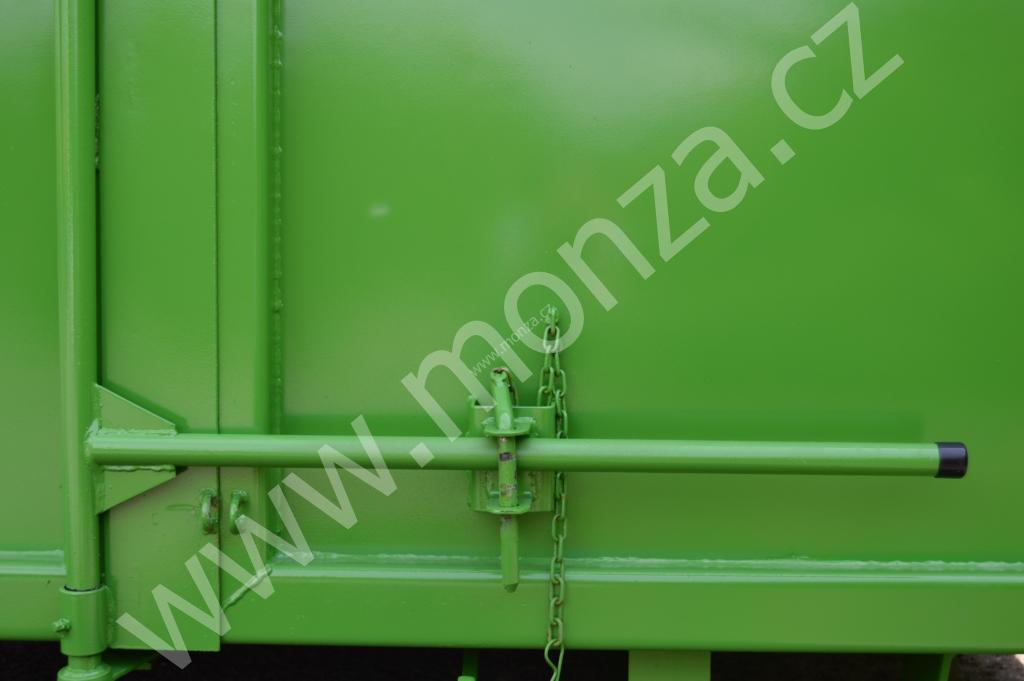

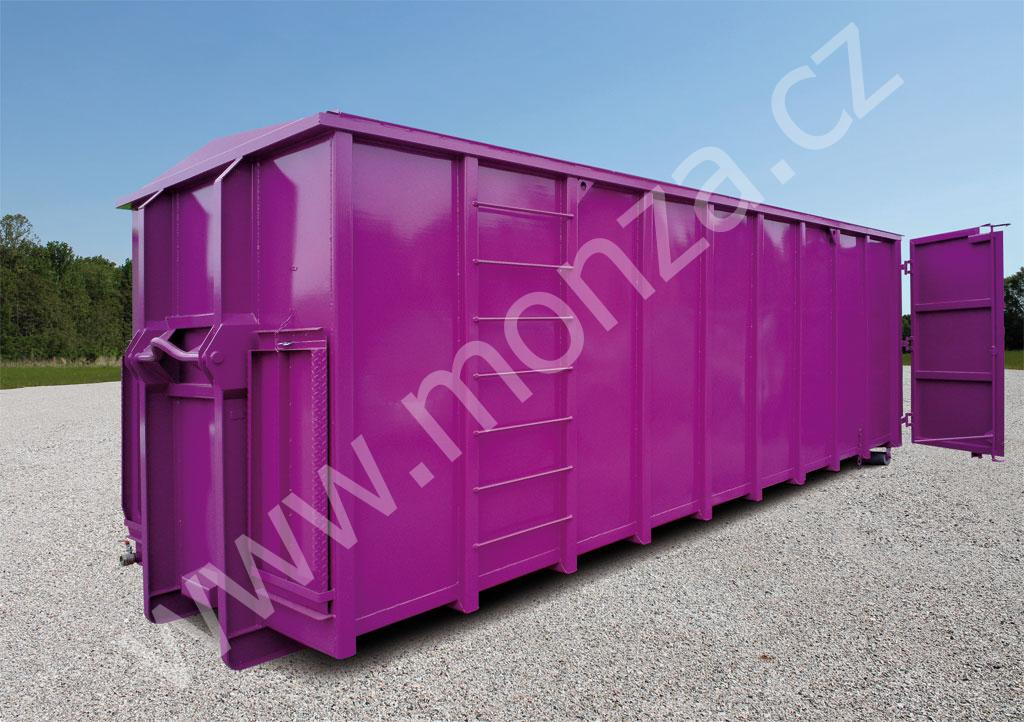

- Double door or tailgate with safety locking system
- Continuously welded

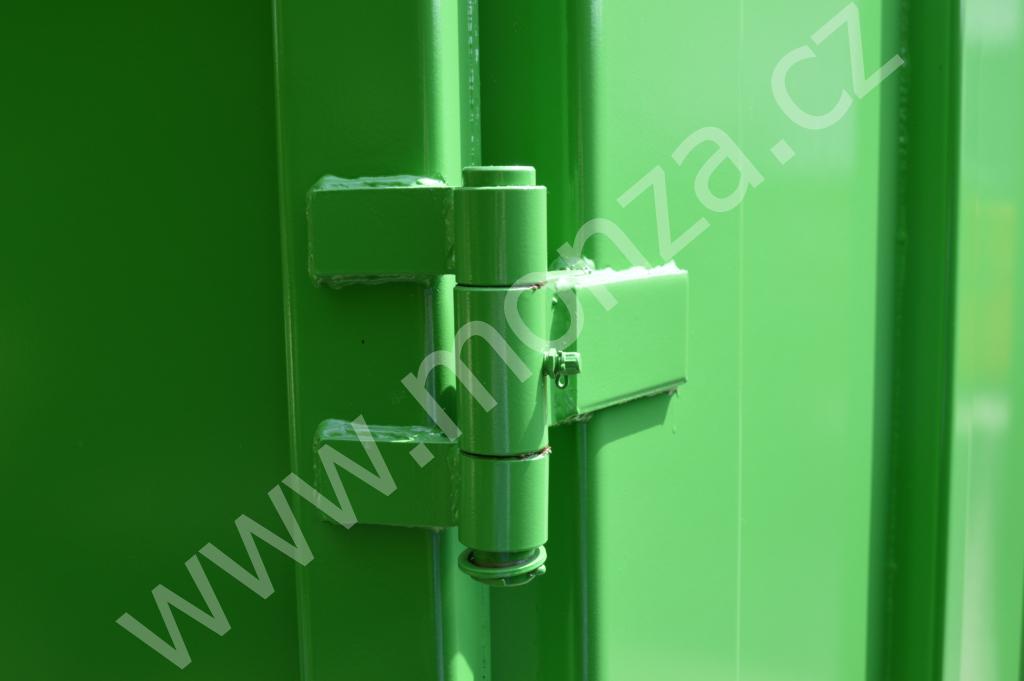

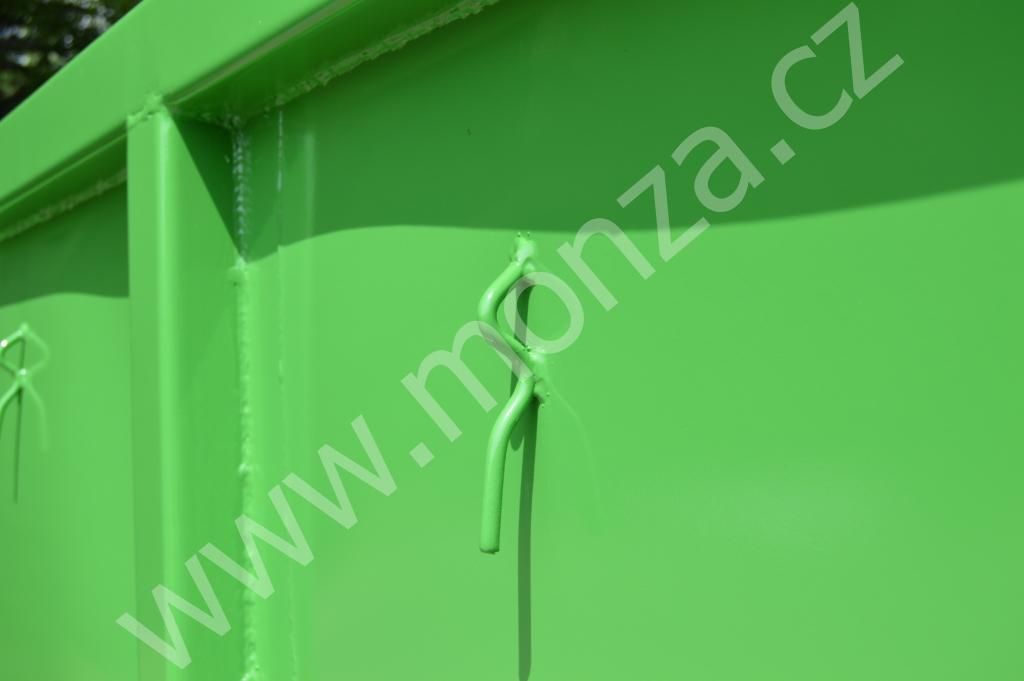

- Tarpaulin/net hooks, welded-on or removable ladder, greased hinges

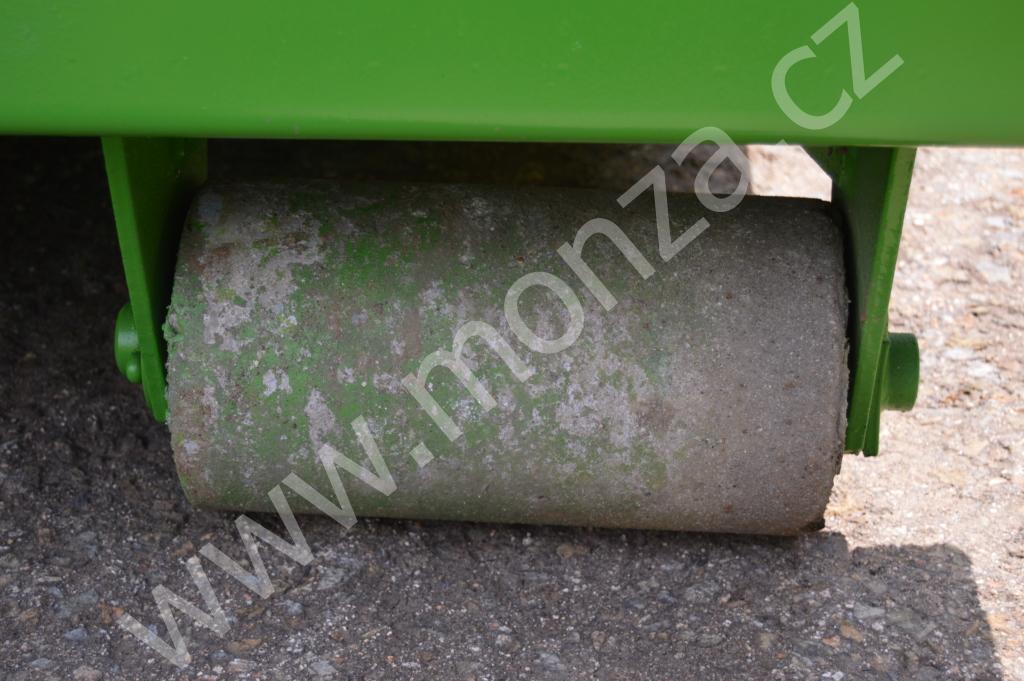

- Rollers/wheels – steel, polyamide, or rubber
- Primed and painted in RAL colour – on request (80-100 mü)
- Max. load capacity: 15 t – 20 t (higher on request)
Request Form
| Inside width (2300 mm) | 2350 mm | ||||||
| Inside lenght (mm) | Volume (m3) | ||||||
| Inside height 1250 mm | Inside height 1500 mm | Inside height 1750 mm | Inside height 2000 mm | Inside height 2250 mm | Inside height 2400 mm | Inside height 2400 mm | |
| 5000 | 14.3 | 17.2 | 20.1 | 23.0 | 25.8 | 27.6 | – |
| 5250 | 15.1 | 18.1 | 21.1 | 24.1 | 27.1 | 29.0 | – |
| 5500 | 15.8 | 19.0 | 22.1 | 25.3 | 28.5 | 30.4 | – |
| 5750 | 16.5 | 19.8 | 23.1 | 26.5 | 29.8 | 31.7 | – |
| 6000 | 17.2 | 20.7 | 24.1 | 27.6 | 31.0 | 33.1 | 33.8 |
| 6250 | 18.0 | 21.5 | 25.1 | 28.7 | 32.3 | 34.5 | 35.3 |
| 6500 | 18.7 | 22.4 | 26.1 | 30.0 | 33.6 | 35.9 | 36.7 |
| 6750 | 19.4 | 23.3 | 27.1 | 31.0 | 35.0 | 37.3 | 38.1 |
| 7000 | 20.1 | 24.1 | 28.1 | 32.2 | 36.2 | 38.6 | 39.5 |
| 7250 | – | – | – | 33.4 | 37.5 | 40.0 | 40.9 |
| 7500 | – | – | – | 34.5 | 38.8 | 41.4 | 42.3 |
